Ford Transit air suspension kit with Compressor for 2001-2024 RWD - 4000kg

Ford Transit air suspension kit:

The Air Suspension Bag KIT with Compressor for Ford Transit 2001-2024 RWD - 4000kg is an aftermarket branded product designed for various Ford Transit models from 2001 onwards. This kit includes air suspension spring bags and a 12V compressor, suitable for rear-wheel drive vehicles with a maximum loading capacity of 4000kg.

The product comes with a 2-year manufacturer warranty and recommended air pressure of Min 10 PSI (unloaded) and 75 PSI (loaded). It is a bundle listing that includes all necessary components for installation, providing a reliable and high-quality solution for improving the suspension system of your Ford Transit.

Specification

Condition: Brand New
Placement on Vehicle: Rear left and right
Max loading：4000Kg/8818.5LBS
Air spring---
Stroke: 140 mm
Max. Extended: 230 mm
Min. Compressed: 90 mm
Operating Pressure : ≤2.0 MPA
Temperature range：≤+70°, ≥-40°
Air pump---
Power: 150W
Output Voltage: 12V
Maximum current: 10A
Maximum Working Voltage: 10bar（1MPa ）

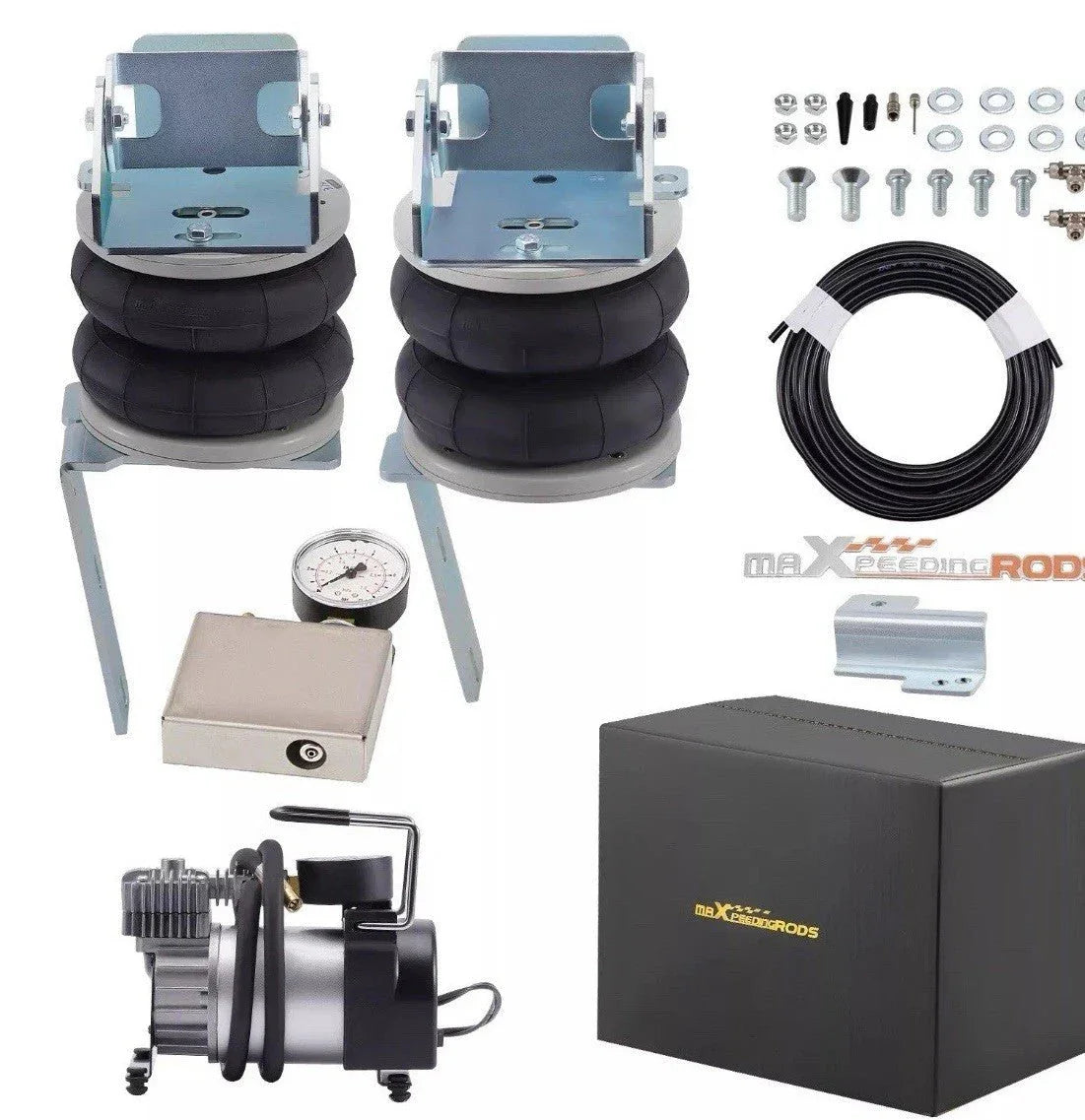

The package includes (as the picture shows):
2x Air spring
1x Air suspension compressor
1x Gauge
7x Mounting bracket
1x Air line
Mounting bolts and Air fittings
