Fiat Ducato air suspension kit with Compressor For Fiat Ducato Citroen Relay 1994-2024

Fiat Ducato air suspension kit:

The MaXpeedingRods Air Suspension Kit with Compressor is designed for Fiat Ducato, Citroen Relay, and Peugeot Boxer vehicles with a maximum loading capacity of 4000kg. This aftermarket branded kit includes a 12V compressor, air suspension spring bag, and necessary components for easy installation. The air suspension kit offers excellent ride quality, durability, and safety, ensuring driving comfort and reducing tire wear. With a 2-year manufacturer warranty, this kit is a reliable and practical solution for enhancing the performance of your vehicle.

Specification

Condition: Brand New
Chassis Type: All standard type Chassis
Placement on Vehicle: Rear left and right
Max loading：4000 Kg

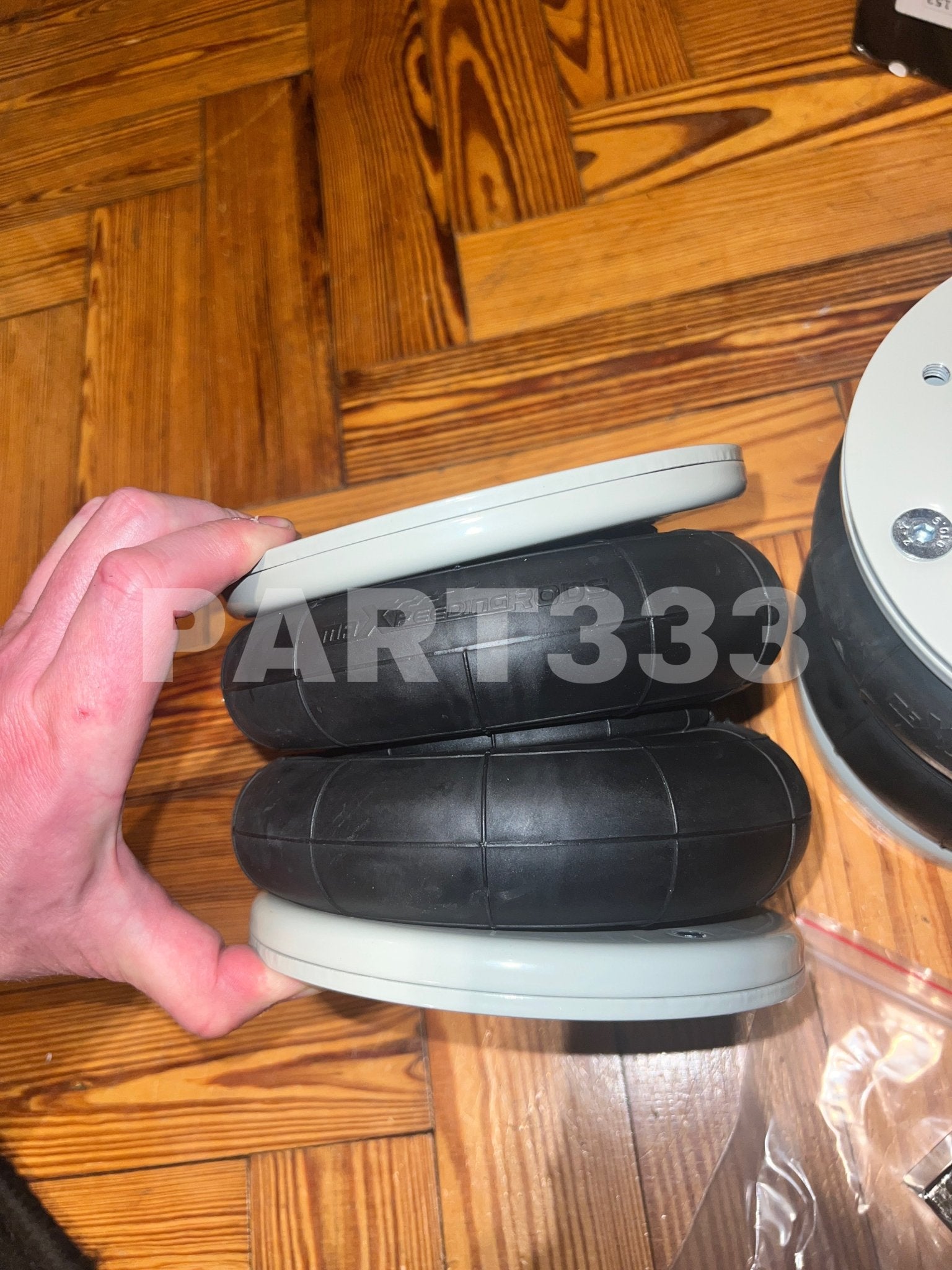

Air spring---
Design height: 172 mm
Stroke: 140 mm
Max. Extended: 230 mm
Min. Compressed: 90 mm
Air pump---
Power: 150W
Output Voltage: 12V
Maximum current: 10A
Maximum Working Voltage: 10bar（1MPa ）

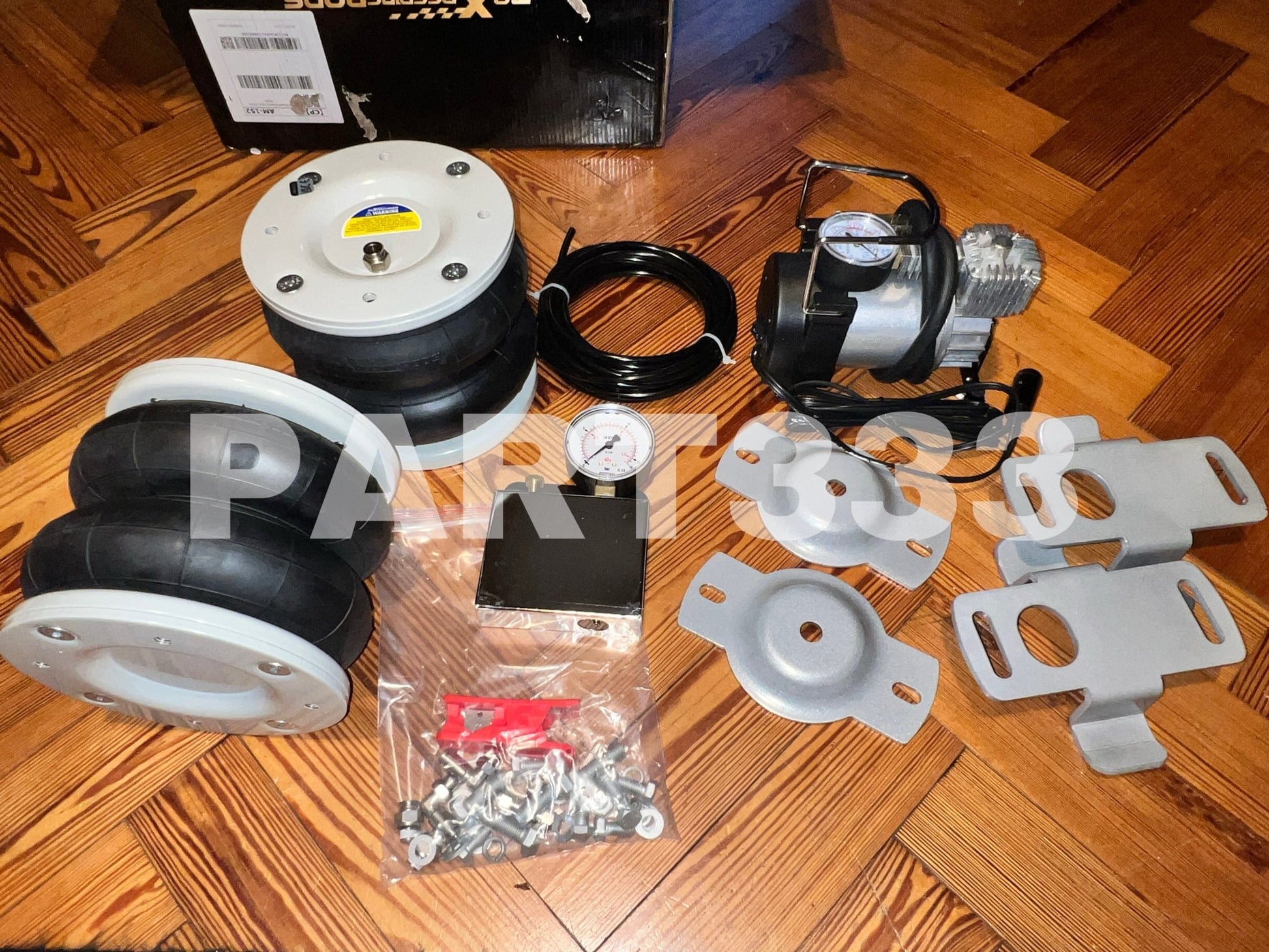

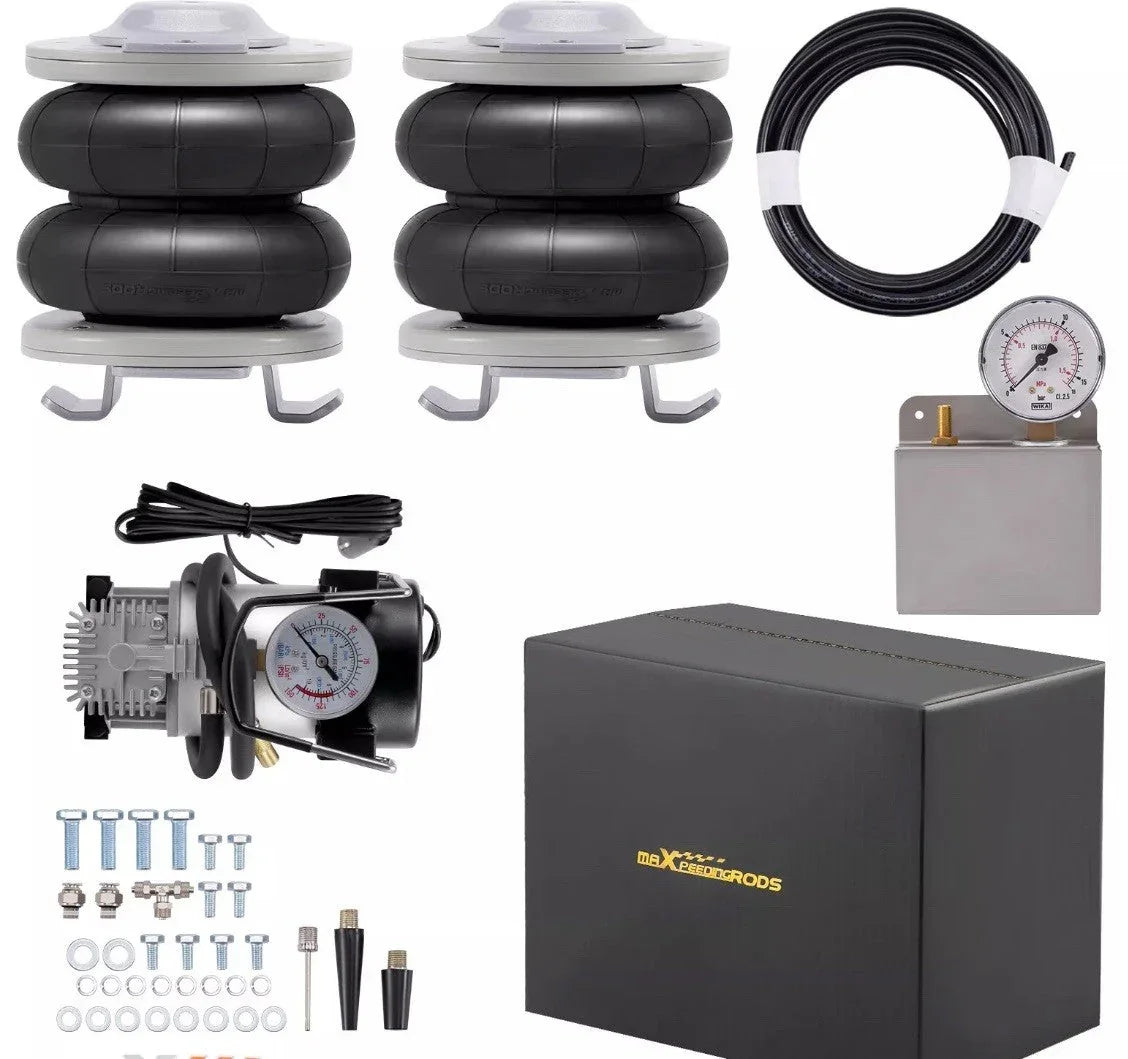

Package includes（as the picture shows）:
2x Air spring
1x Air suspension compressor
1x Guage
4x Mounting bracket
1x Air line
Mounting bolts and Air fittings

Feature

1、Stress Test Over 5,000,000 Times：Durable and Safe
2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise
3、100% Air Tightness Guarantee
4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material
5. 4-Layer reinforcement construction: Enhances air spring load support.
6、Use high-quality steel with high load-bearing capacity and long life.
7、Excellent and practical bolt-on installation.
8、Safe carrying capacity and stability
9、Restore the original ride height and improve ride quality
10、Ensure our driving comfort and reduce tire wear.
11、Dacromet is a new surface treatment technology that has excellent corrosion resistance compared to traditional electroplating processes.
